Fully Automatic Intelligent Transformer Test System for Wuxi Yinow Electric Equipment Co., Ltd.8th Intelligent Test Station (Part 1)Online Dry-Type Transformer One-Time Wiring Test System

1. Project Overview

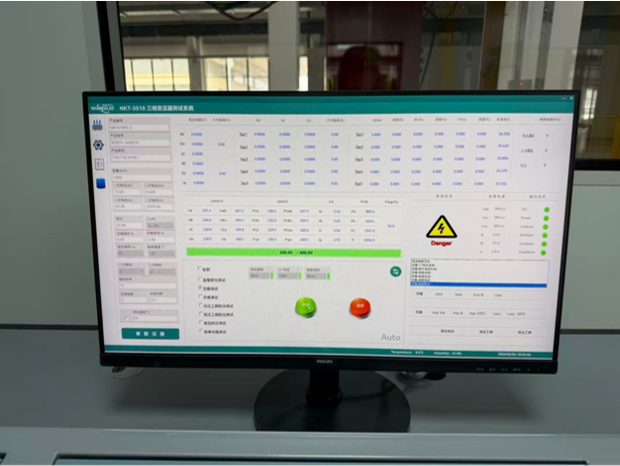

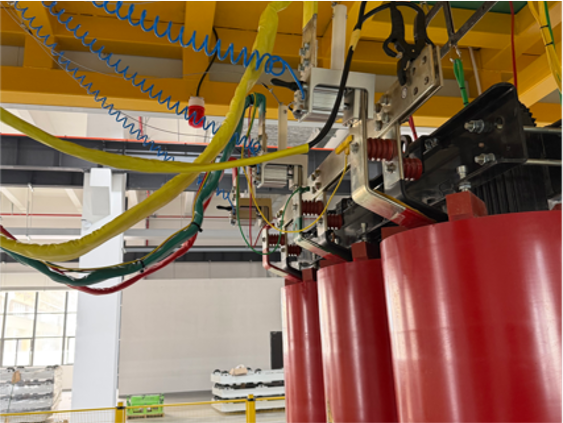

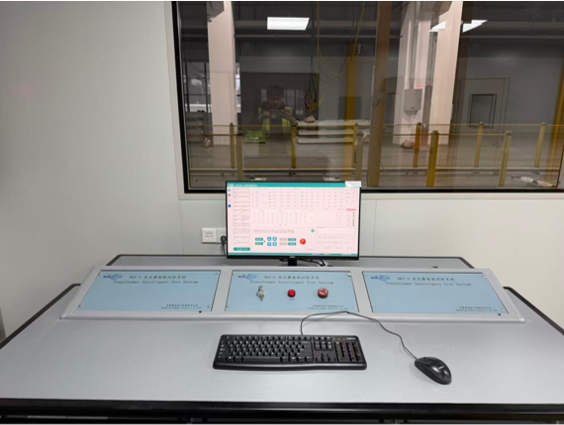

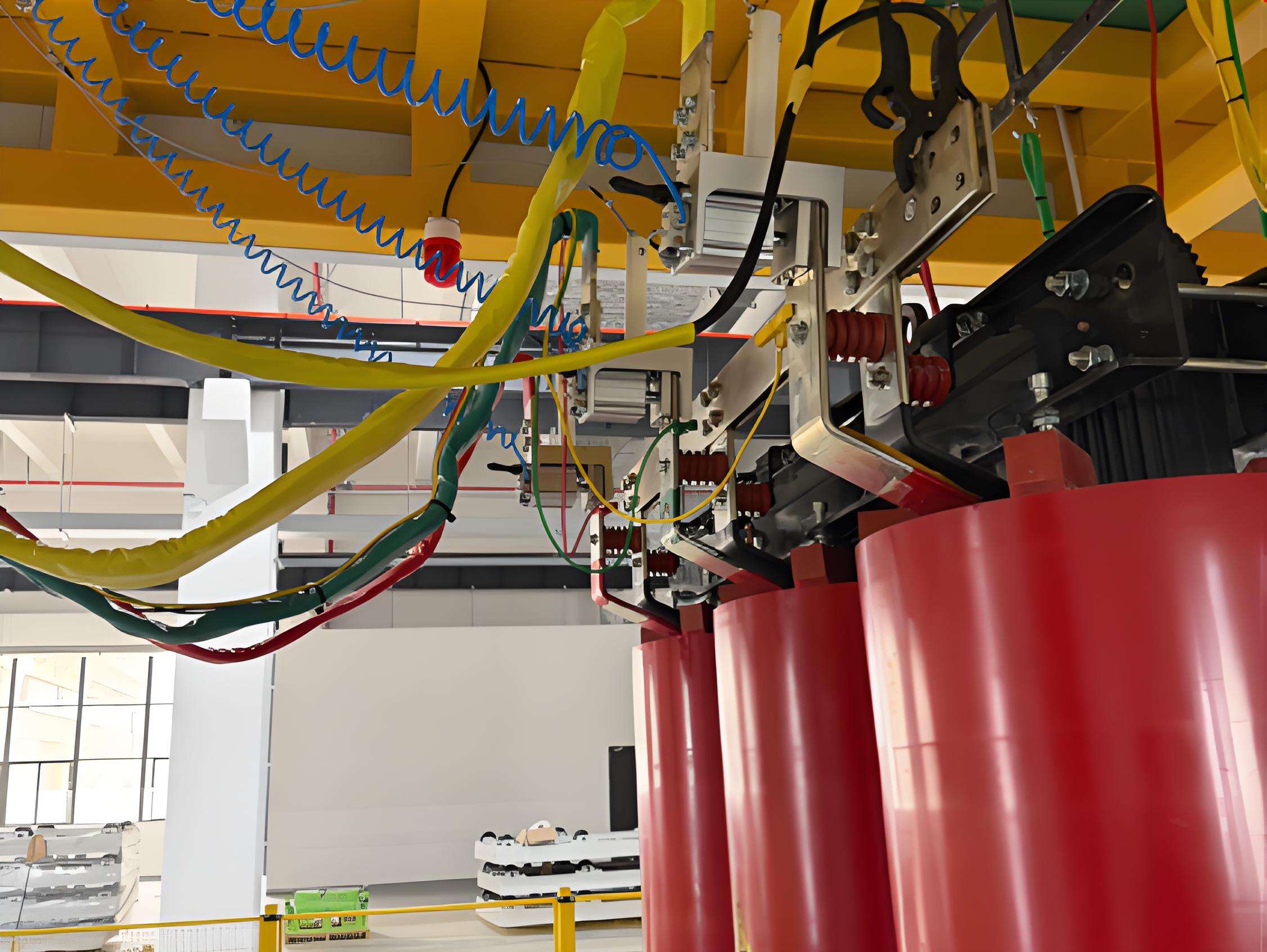

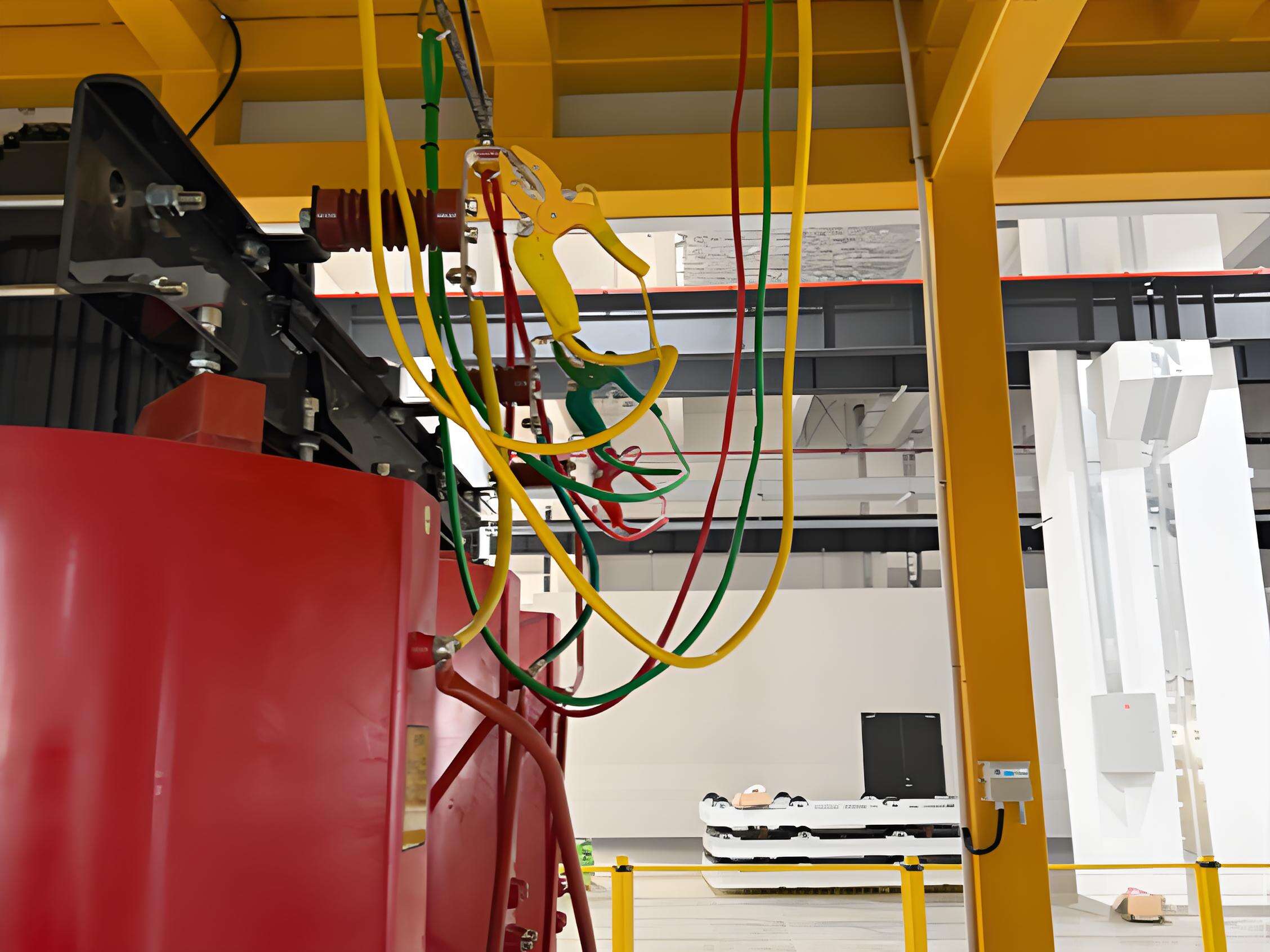

Customized by Nankee Electric for Wuxi Yinow Electric Equipment Co., Ltd., this project is Part 1 of the customer's 8th intelligent test station in 2025, serving as an online dry-type transformer one-time wiring test system.It can complete 7 routine factory tests for dry-type transformers up to 1.6MVA in one single wiring setup, supporting efficient assembly line operation. By eliminating repeated wiring in traditional testing, it greatly improves test efficiency and meets quality control requirements for products used in rail transit, power transmission & distribution, new energy and other fields.

2. Maximum Test Capacity

Applicable capacity: 30kVA–1600kVA (dry-type transformers ≤1.6MVA)

Voltage class: Primary 10.00kV, Secondary 0.4kV

Short-circuit impedance: 10% and below

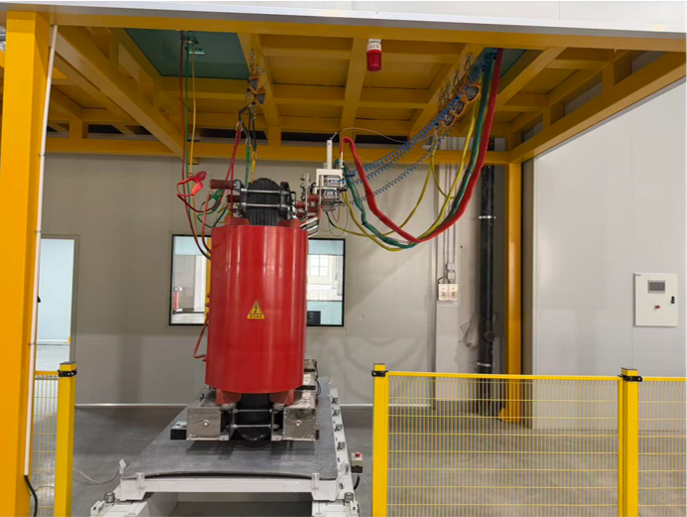

Application scenario: Dry-type transformer assembly line test area

3. Routine Test Items

(1) Insulation resistance test;

(2) DC resistance test;

(3) Transformer ratio and vector group test;

(4) No-load test: measurement of no-load loss, power factor and percentage of no-load current;

(5) Load test: load loss (automatic conversion at 75℃, 120℃, 145℃) and percentage of short-circuit impedance;

(6) Induced overvoltage withstand test;

(7) Power frequency withstand voltage test.

4. Project Highlights

One-time wiring, high efficiency: Completes all 7 tests with one connection, easy operation, matching fast-paced production lines and shortening test cycle.

Automatic temperature conversion, accurate & compliant data: Load loss automatically converted at multiple temperatures without manual calculation, meeting industry standards.

High-precision configuration, stable measurement: Equipped with high-precision power analyzer, strong anti-interference and reliable test data.

Mature solution & full-service support: Fast delivery with proven solutions, providing integrated installation, commissioning and training services.

5. Commissioning Information

Client:Wuxi Yinow Electric Equipment Co., Ltd.

Commissioning Time: March 2026

Operation Time: April 2026
