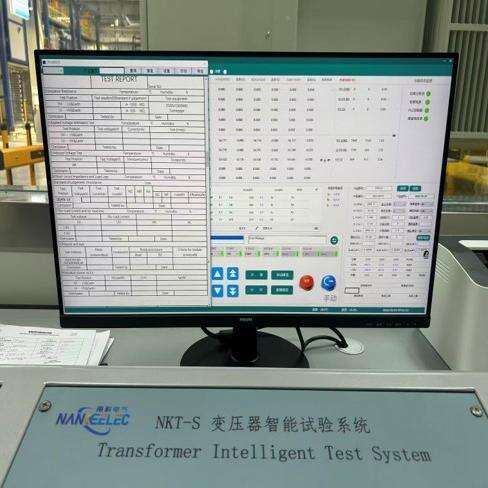

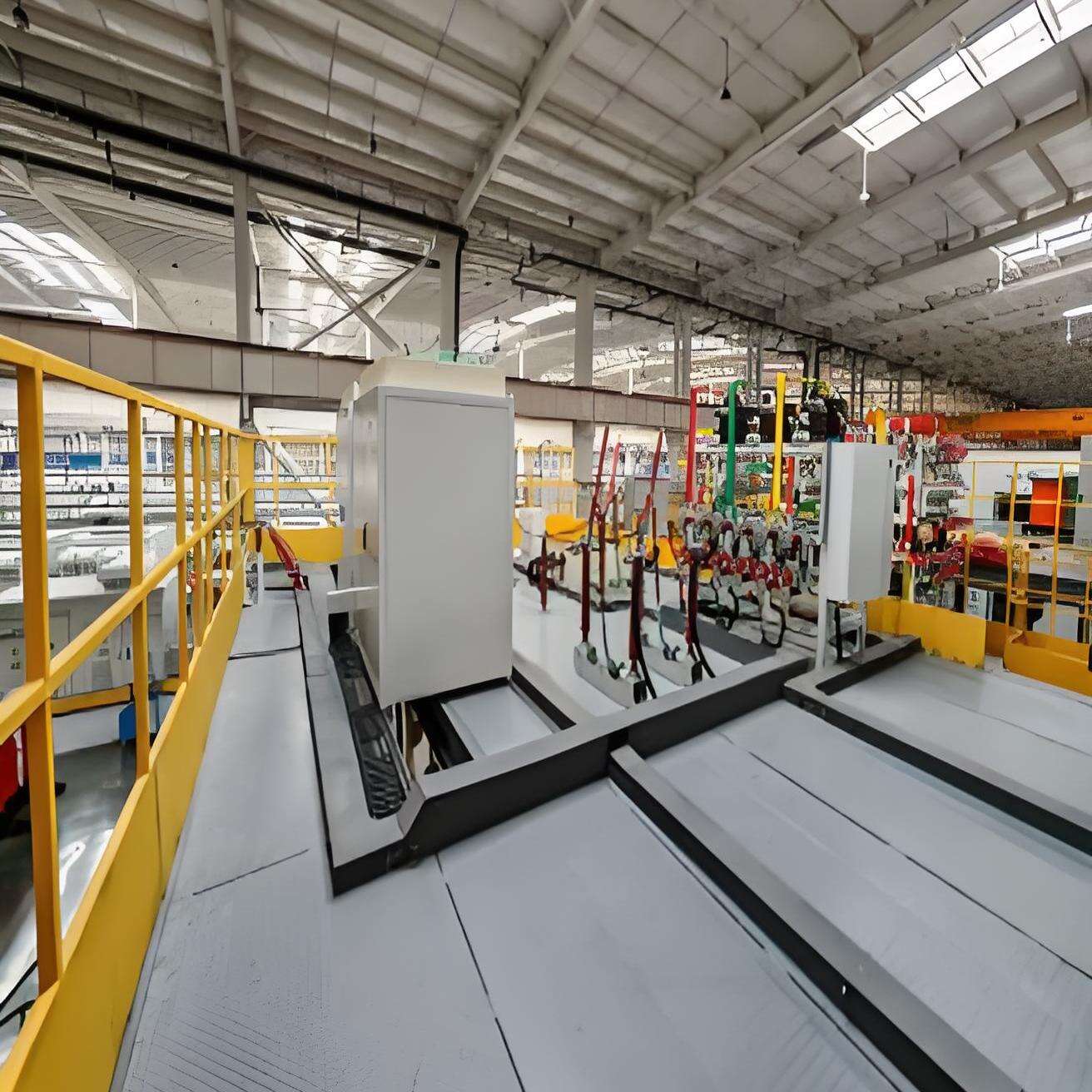

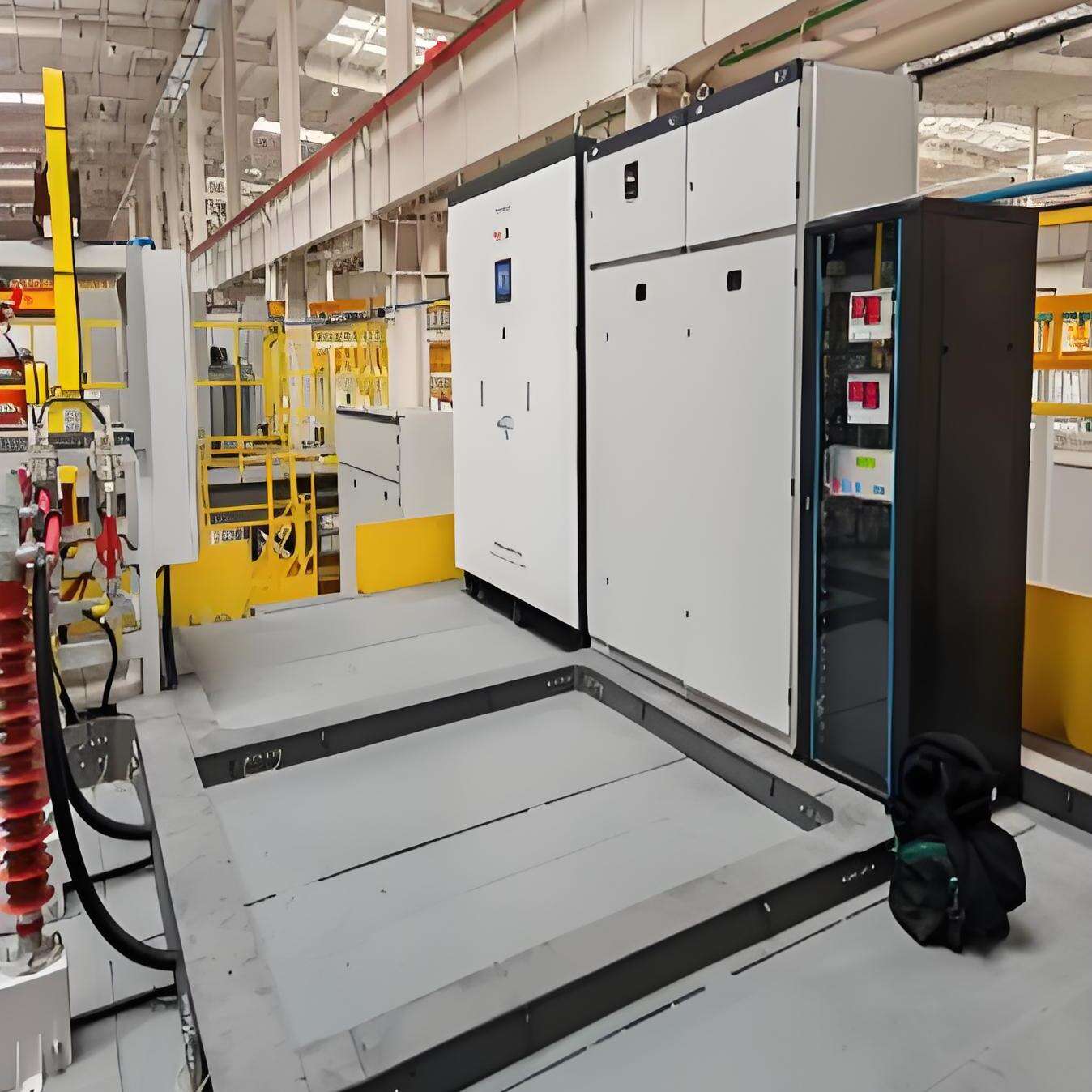

1. Project Overview This project is a fully automatic transformer intelligent test system customized by Nanke Electric for Shandong Tailai Electric Co., Ltd., which is engaged in the new energy and smart grid fields and holds multiple certifications ...
This project is a fully automatic transformer intelligent test system customized by Nanke Electric for Shandong Tailai Electric Co., Ltd., which is engaged in the new energy and smart grid fields and holds multiple certifications including the three major management systems, PCCC and CCC, as well as electric power construction qualifications. Tailor-made for the customer's core transformer production lines such as 35KV oil-immersed/dry-type step-up transformers and 10KV distribution transformers, the system realizes full-process automated testing, high-precision data collection and standardized report output, effectively optimizing the quality inspection process and improving the testing efficiency of the production line.
High voltage: 69.3KV, Low voltage: 6.3-10.5KV
Capacity: Oil-immersed three-phase transformers of 20000KVA and below
Frequency: 50/60HZ
Impedance: 4%-18% and below
(1) Transformer insulation resistance test and dielectric loss test
(2) Transformer DC resistance test
(3) Transformer ratio and vector group test
(4) Transformer no-load loss and no-load current measurement, with optional and automatic testing at 90%, 100% and 110%
(5) Calculation of transformer no-load current percentage and transformer no-load harmonic measurement
(6) Transformer load loss measurement with standard temperature conversion, and transformer short-circuit impedance measurement with standard temperature conversion
(7) Transformer induced voltage withstand test and power frequency voltage withstand test
(8) Transformer temperature rise test
(1) High adaptation to core products: Customized to match the testing requirements of 35KV step-up transformers, and tailored to the product characteristics of the new energy and smart grid fields.
(2) Full coverage of test items: Integrating all tests including insulation, electrical parameters, voltage withstand and temperature rise, realizing one-stop performance testing of transformers.
(3) Full-process automatic operation: Supporting automatic no-load testing at multiple gears, with automatic parameter collection and temperature conversion, greatly shortening the testing cycle.
(4) High-precision data collection: Equipped with professional testing instruments, featuring accurate data and strong anti-interference ability, ensuring authoritative and reliable test results.
(5) Customizable report output: Test reports can be customized according to customer needs, with complete data and standardized format, facilitating filing and quality traceability.
Client: Shandong Tailai Electric Co., Ltd.
Operation Time: January 2026
Operation Status: Delivered and put into operation, running stably, providing professional testing support for the quality control of the customer's transformer products.
